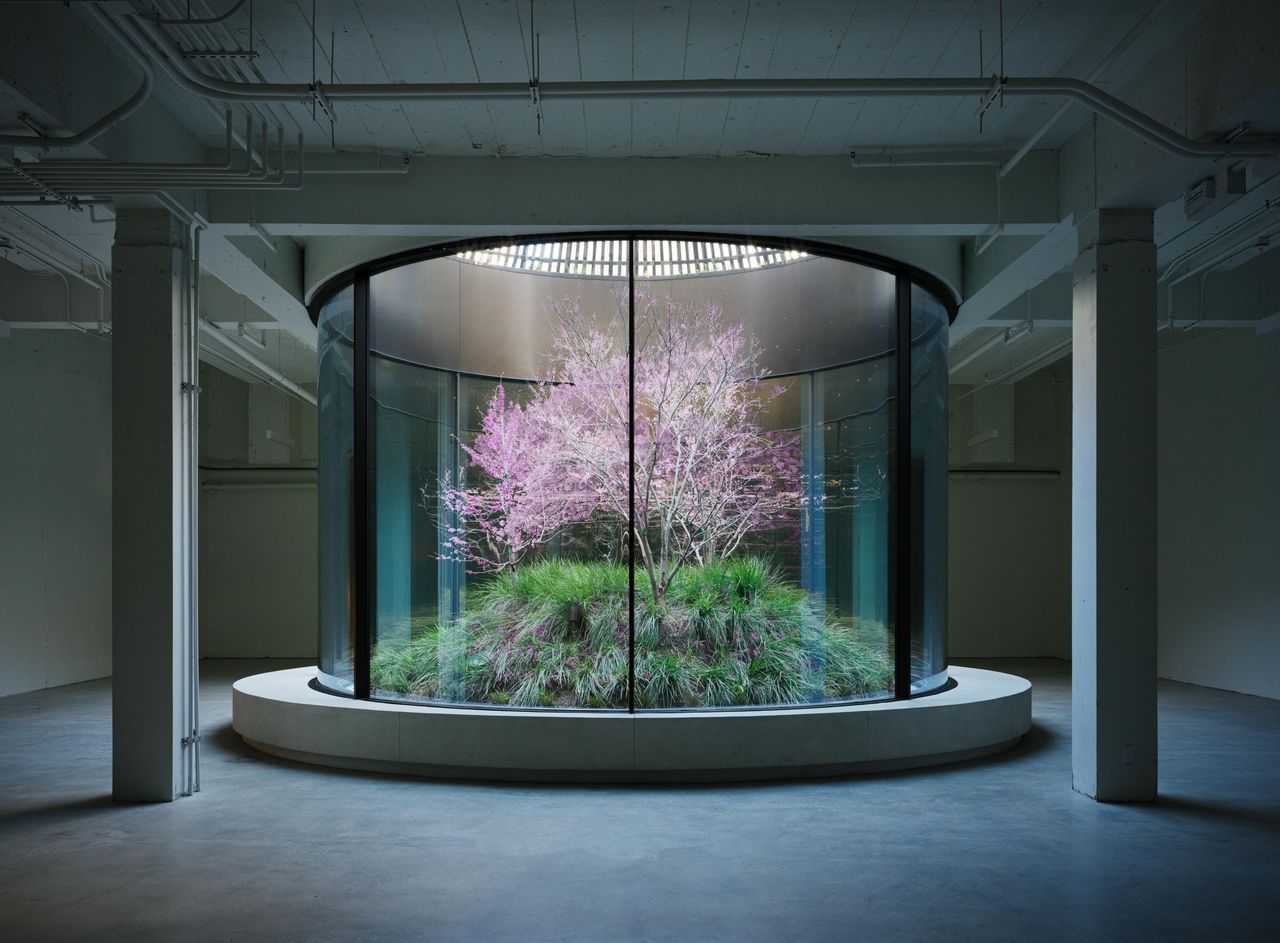

Wilshire Boulevard
Montalba Architects
Arc
Sky-Frame · Ireland and Northern Ireland
Frameless glazing,
specified properly.
We work with architects from early design through to installation — resolving thresholds, spans and interfaces before they become site problems.
The range
Four systems, then two decisions.
The system follows the opening. The track and the glazing follow the performance you need. We'll tell you when a simpler answer does the job.
Classic
The original Sky-Frame system. Straight runs, ceiling-height glass, frames flush with floor and ceiling.
Panes to 2.3 × 4 mArc
Curved glass on a curved track, for radiused elevations.
Radius from 2.5 m

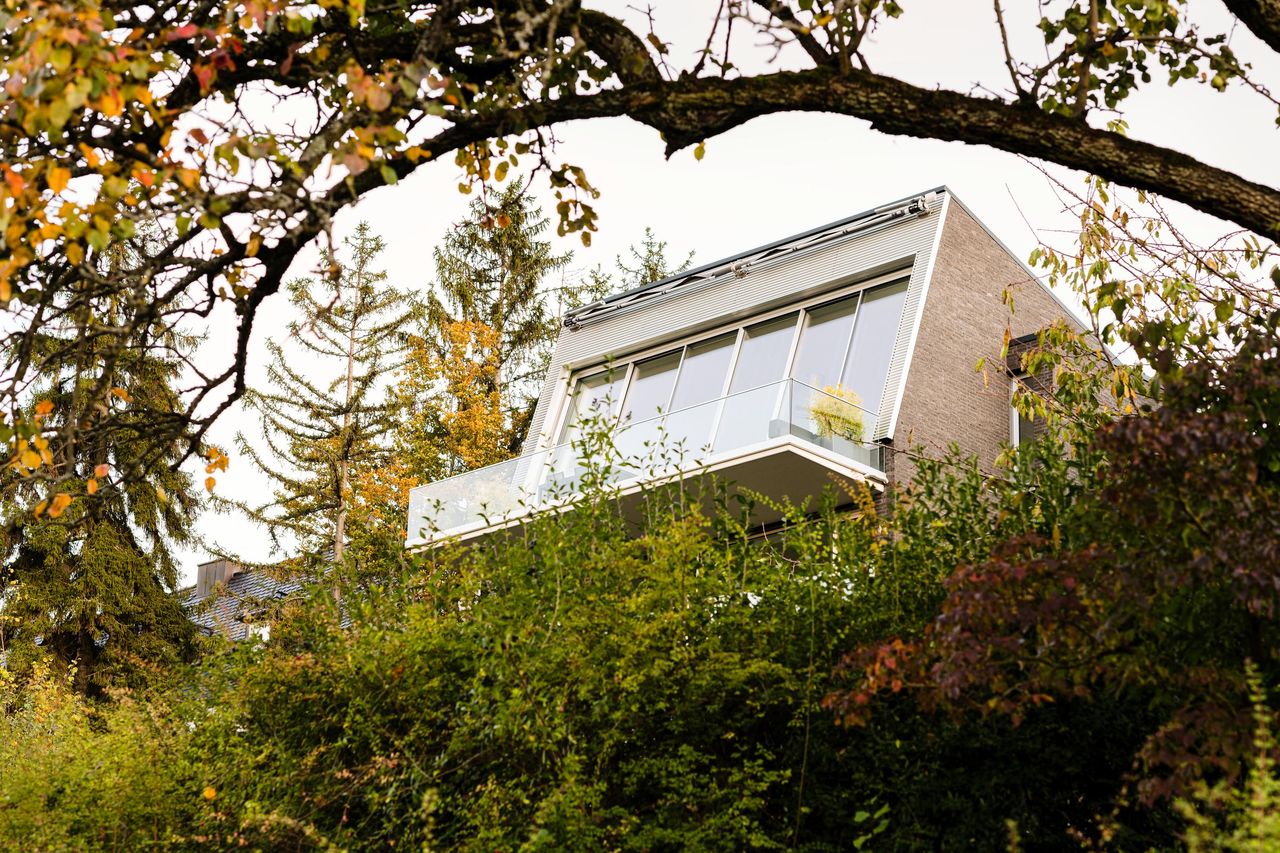

Slope
Sliding glass set at an angle — leaning into the room or out from the facade.
Up to 20°

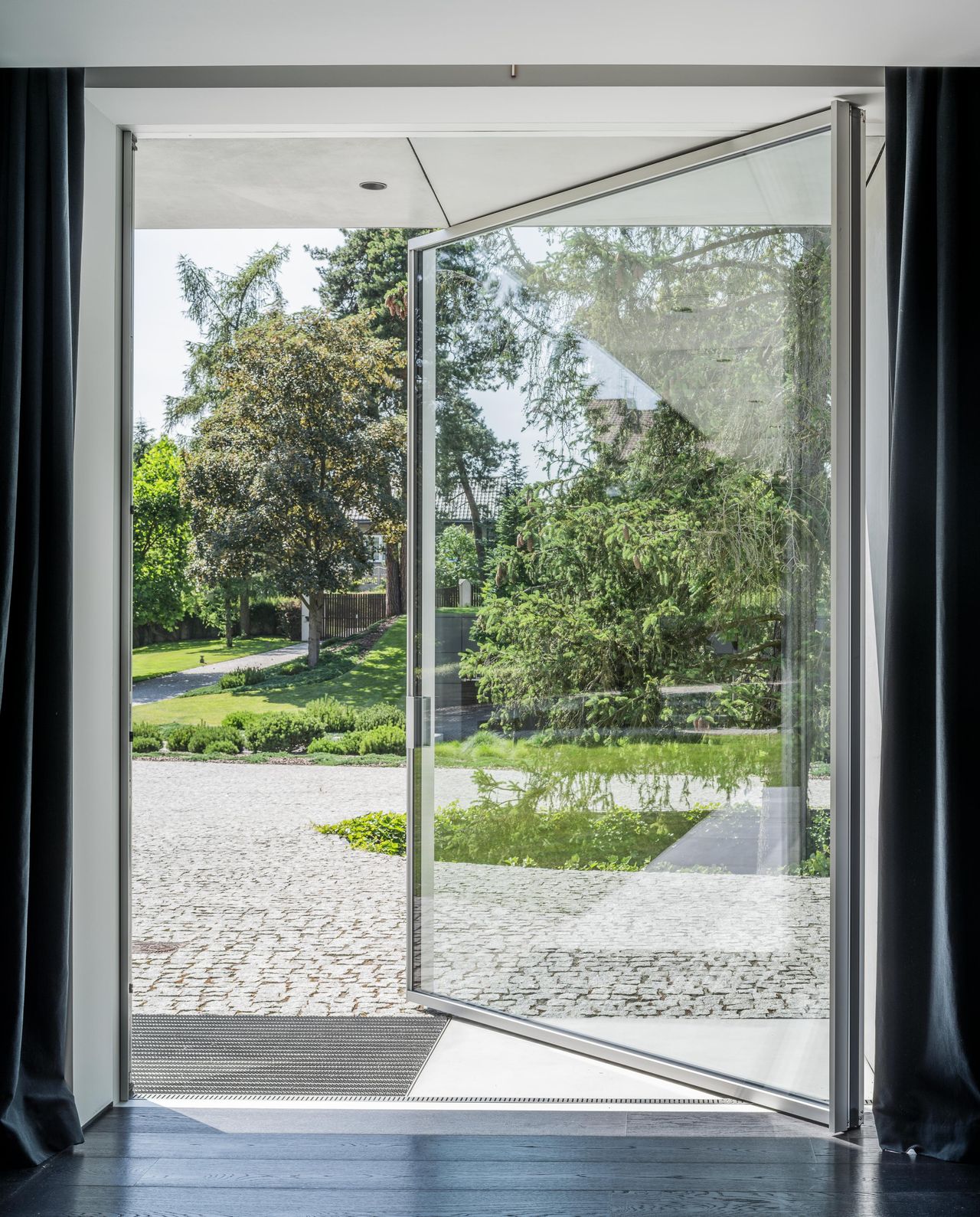

Pivot
A glass door that turns on an offset axis. One leaf, up to 2.5 × 4.5 m.
Leaf to 2.5 × 4.5 mTrack — how it meets the floor
Original
A visible transition at the threshold. Works with every Sky-Frame system.
Plain

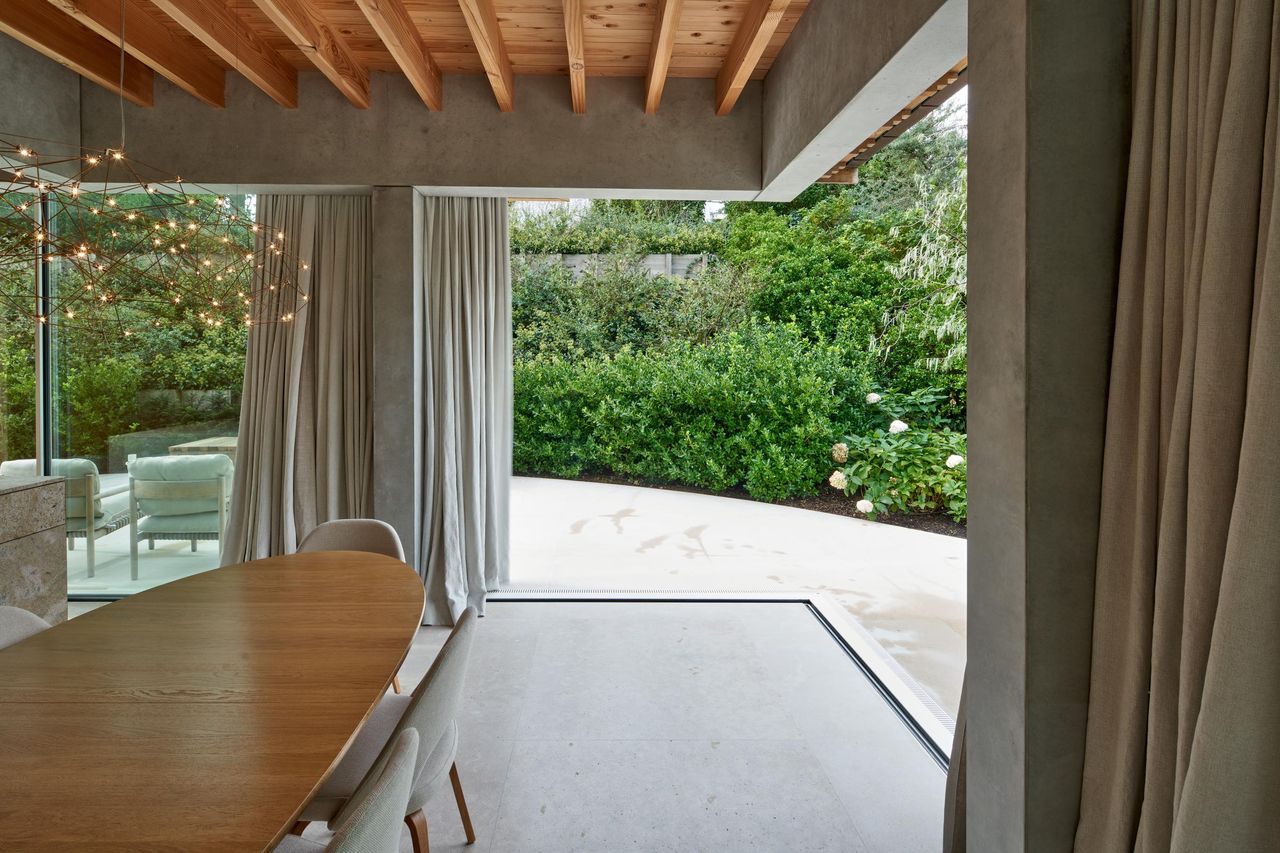

The track sits in a narrow gap in the floor — 10 mm double-glazed, 13 mm triple — with the flooring running between.
Glazing — how it performs
Sky-Frame 2
Double, 30 mm. Uw 1.36 W/m²K. The most specified.
Sky-Frame 3
Triple, 54 mm. Uw 0.87 W/m²K. MINERGIE certified.
Thermal values EN 10077, Sky-Frame Classic with Original track. Source: Working with Sky-Frame.
Most of the work happens before anything is glazed.
Structural openings, thresholds, drainage, and the interfaces between trades. Get those right and the glazing is straightforward. Get them wrong and no system saves you.
Read the architecture
What the opening is doing, before what product goes in it.
Resolve the interfaces
Where the glazing meets structure, floor build-up and drainage.
Install and hand over
One point of contact from first drawing through to handover.
Also from PureView
Jansen Arte, where the answer is steel.
Sky-Frame is what we specify for large frameless openings. It is not what you want in a protected structure or a replacement window. Jansen Janisol Arte 2.0 is slim steel — 25 mm face widths on fixed glazing, 20 mm on vents — for renovation work and for elevations where a steel sightline is the point.
25 / 20 mmFace width, fixed / vent
45 dBSound reduction, to
RC2Burglar resistance

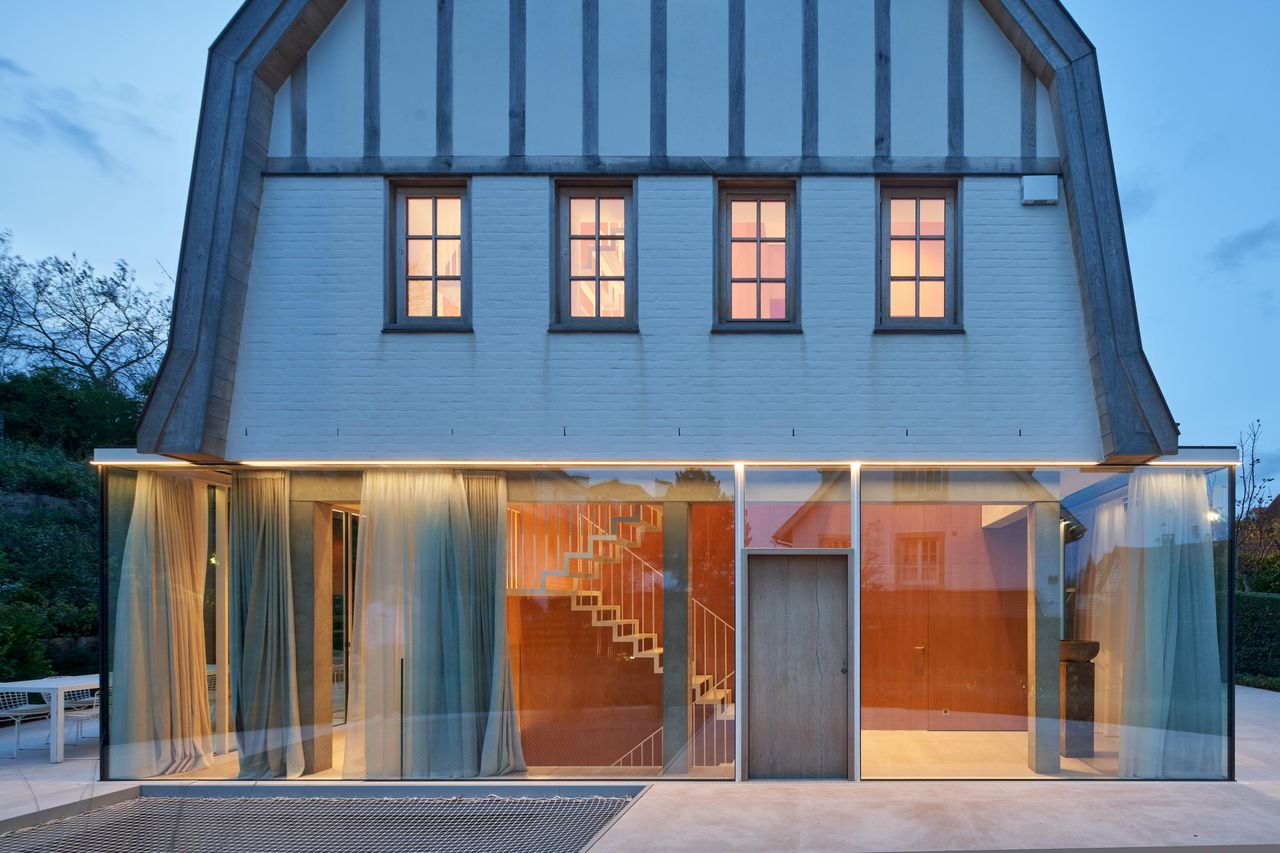

Sky-Frame reference projects
Where these systems have already gone.
Sky-Frame reference projects, published with the architects and photographers named. Our own installations join them as they complete.

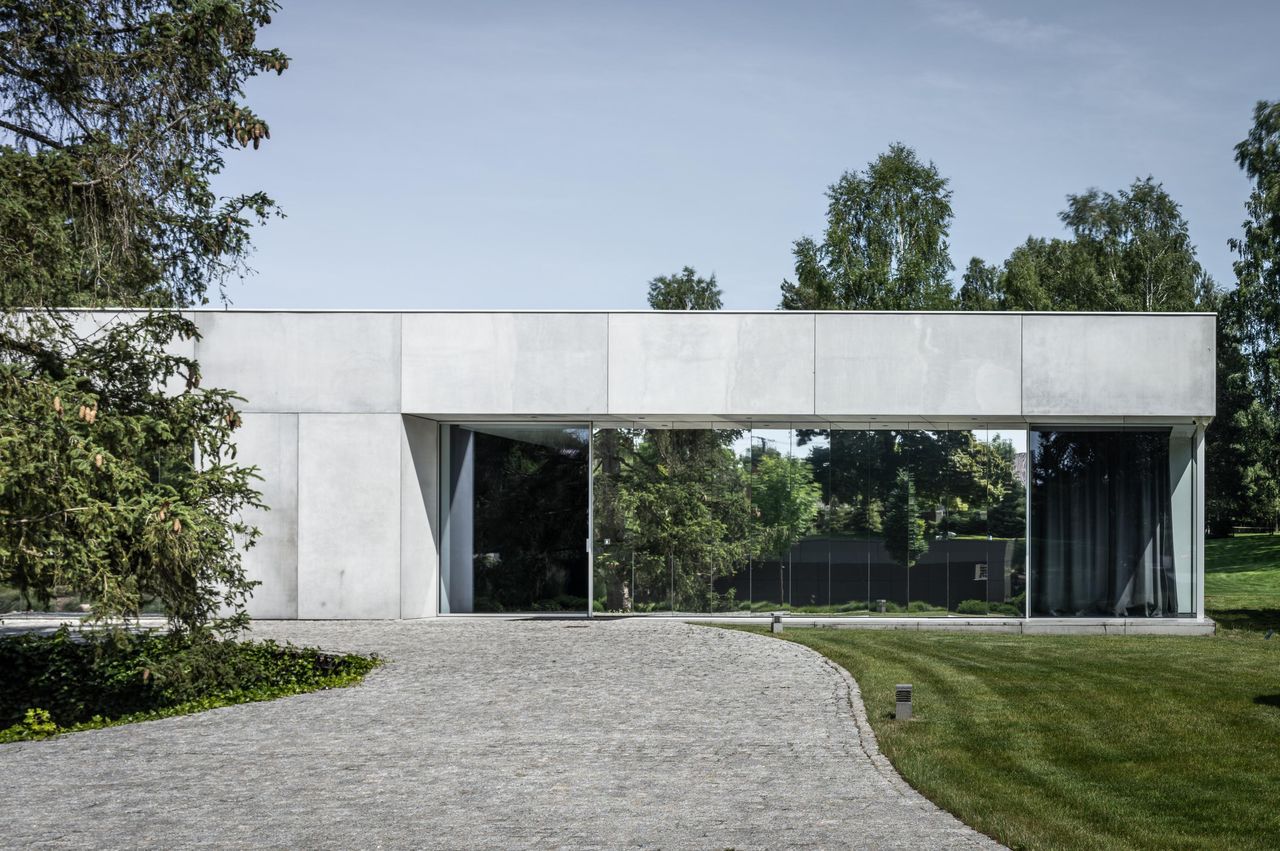

House on the rock
Tamizo
Pivot

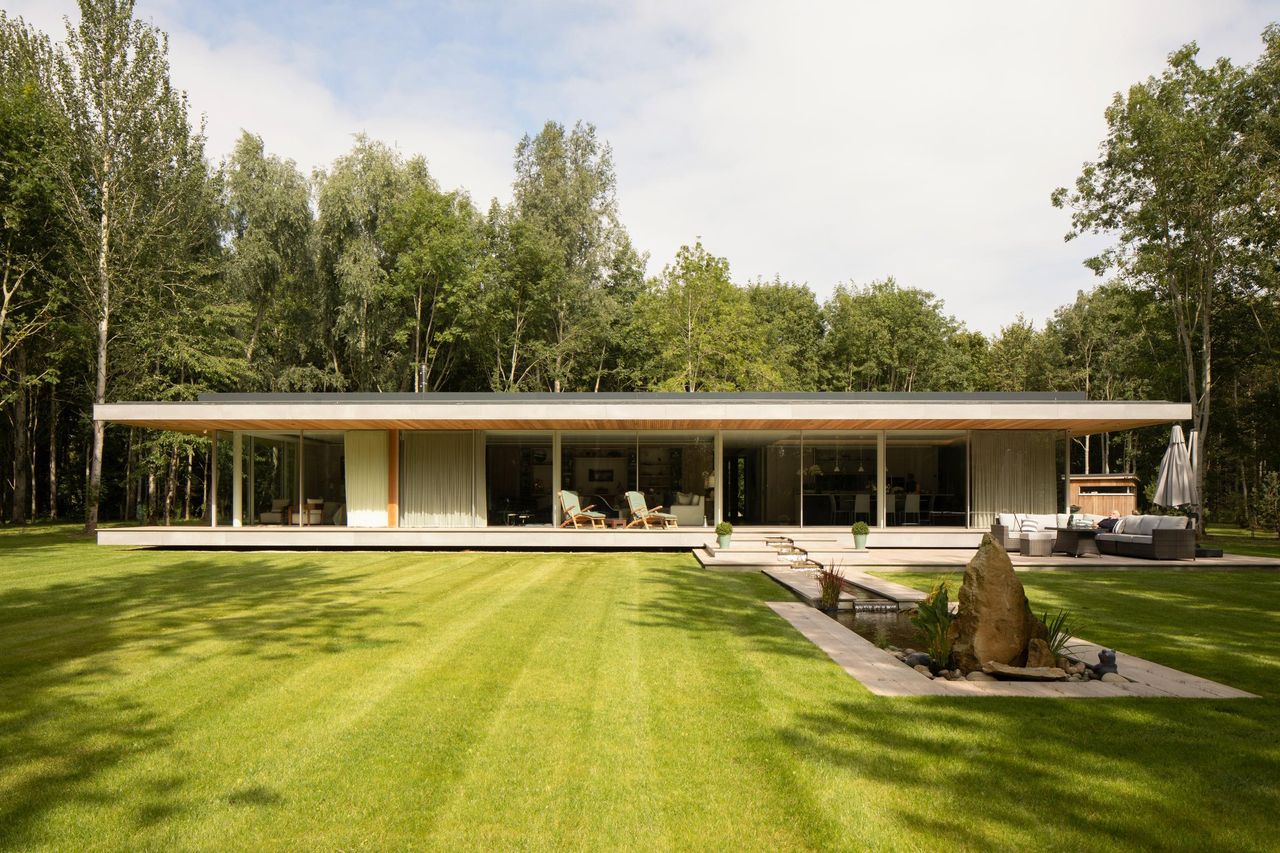

Forest Pavilion
Broadway Malyan
For architects
Send us the drawings.
We'll tell you what's specifiable, what isn't, and what it changes — early, while it's still cheap to move things.
